Everyone that has made a board or had a board made for them, post it up! Thinking about trying it soon so need ideas! Also put up how you made it!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
|
Ro$$ Faceplant
![Faceplant Faceplant](/forum/images/ranks/rank0.gif)
Joined: 21 Jul 2005 Posts: 36 City: Lake Tapps
|
Posted: Jun 10, 2010 5:41 pm Post subject: |
|
|

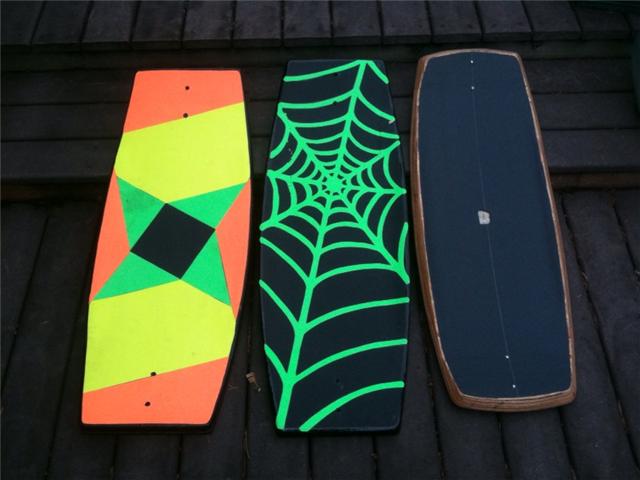

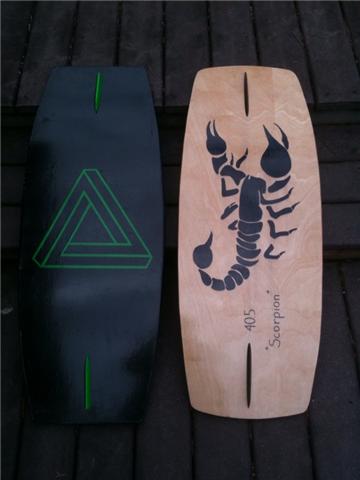

here are 3 concave decks i recently finished. The spider web is actually hand cut grip tape.. not painted; unfortunately it cracked so i cant ride it anymore The one on the left i call a split-tail, solid deck in the middle and gaps in between the tails. (patent pending!)
![all3 front.jpeg](files/all3_front.jpeg)
|
Description: |
|
Filesize: |
35.05 KB |
Viewed: |
15132 Time(s) |
![boards bottom.jpeg](files/boards_bottom.jpeg)
|
Description: |
|
Filesize: |
18.07 KB |
Viewed: |
15132 Time(s) |
![scorpion closw.jpeg](files/scorpion_closw.jpeg)
|
Description: |
|
Filesize: |
75.33 KB |
Viewed: |
15132 Time(s) |

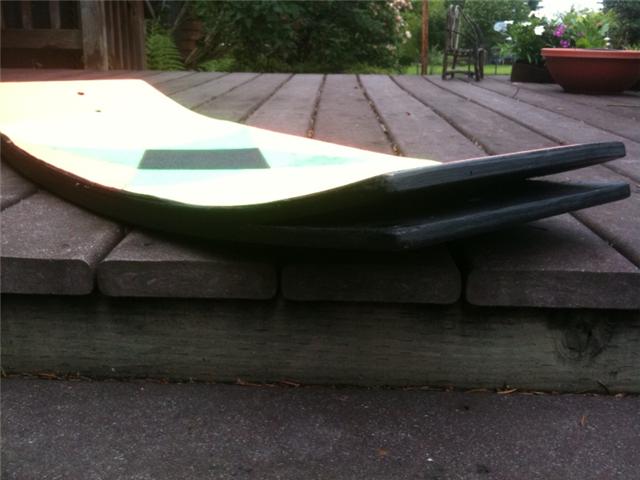

![split tail side.jpeg](files/split_tail_side.jpeg)
|
Description: |
a single deck/bi-level hybrid |
|
Filesize: |
36.07 KB |
Viewed: |
15132 Time(s) |
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
Jay Bird Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
![](images/avatars/4203901604c36bd0951eb1.gif)
Joined: 27 Oct 2009 Posts: 376 City: North Bay, CANADA
|
Posted: Jun 10, 2010 9:42 pm Post subject: |
|
|
convave on the right in #1 looks moneeyy
_________________ party.
My Eyes, tha Goggles Do Nossing! |
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
wakeskatingrulezd00d Pop Shuvit
![Pop Shuvit Pop Shuvit](/forum/images/ranks/rank2.gif)
![](images/avatars/9230094004a52d810dbb2e.jpg)
Joined: 04 Oct 2008 Posts: 158 City: folsom, LA
|
Posted: Jun 10, 2010 11:07 pm Post subject: |
|
|
that split tail is sick!
i was gonna make one like that, but i never got around to it!
good job on the boards tho bro!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
Raven 3 Shuv Reed Texas Gap
![](images/avatars/16941359284e736615013c4.jpg)
Joined: 18 Oct 2004 Posts: 5988 City: OC
|
Posted: Jun 10, 2010 11:13 pm Post subject: |
|
|
wow...... somebody got an A in art
_________________ dbanana wrote:
May you have friends,boards,beer,and glassy water forever. Cassette4life |
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
counterpart Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
Joined: 09 Jun 2009 Posts: 266 City: 661
|
Posted: Jun 10, 2010 11:54 pm Post subject: |
|
|
Great work!! That grip must have taken a while! Looks great though! Any pics of the concave on the far right one? Looks like a fun board and the scorpion theme is pretty cool too!
I was honestly thinking about that "Split-Tail" idea earlier today and wondering if it would work! I guess so!
How did you make them?? Did you use the same press for all of them and how did you do the split tail?
Need more homemades on here guys!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
Ro$$ Faceplant
![Faceplant Faceplant](/forum/images/ranks/rank0.gif)
Joined: 21 Jul 2005 Posts: 36 City: Lake Tapps
|
Posted: Jun 11, 2010 12:38 am Post subject: |
|
|

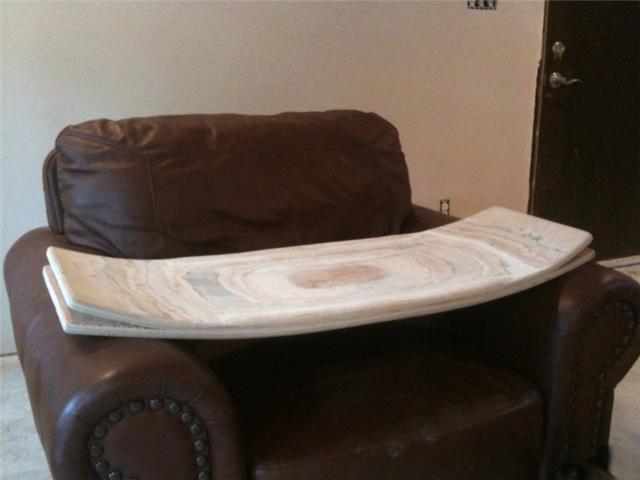

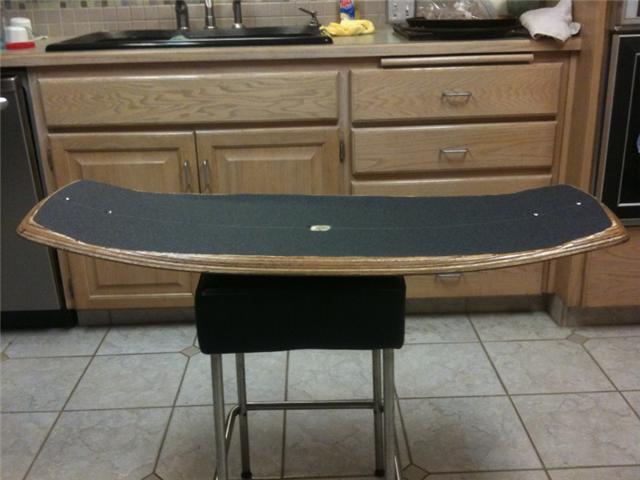

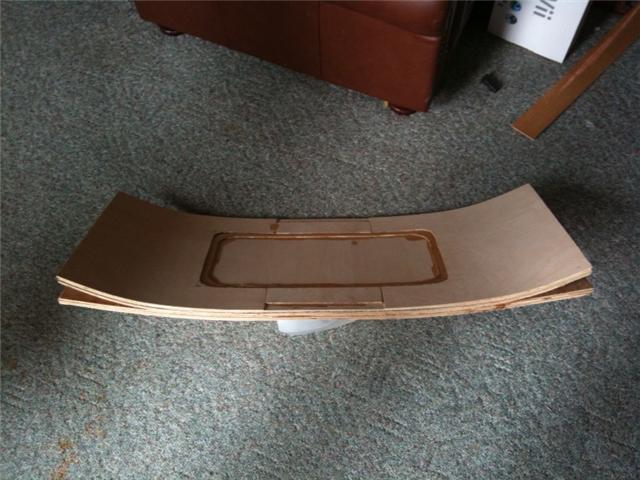

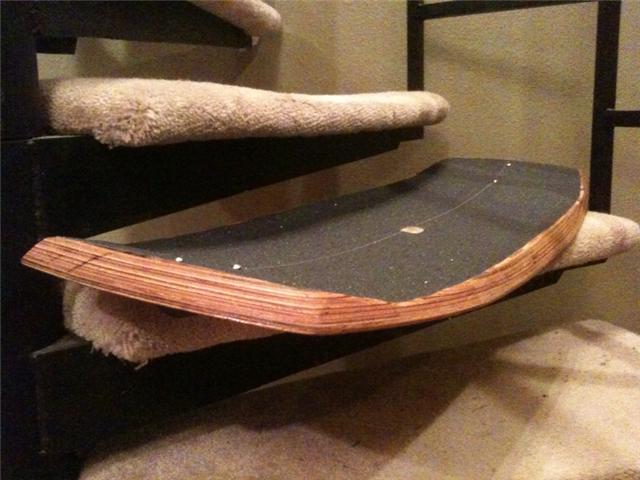

heres a couple concave pics of the "scorpion" and a few more of the split tail before it was finished.
all 3 decks were made on the same wood press, i pressed the split tail last because i had to modify the press to allow for more space around the tails. to make the split i didnt epoxy the nose and tail section between the middle plys so i could drive a spacer in between.
![split tail raw.jpeg](files/split_tail_raw.jpeg)
|
Description: |
|
Filesize: |
50.82 KB |
Viewed: |
15027 Time(s) |
![split sanded.jpeg](files/split_sanded.jpeg)
|
Description: |
|
Filesize: |
25.37 KB |
Viewed: |
15027 Time(s) |
![concae2.jpeg](files/concae2.jpeg)
|
Description: |
|
Filesize: |
43.47 KB |
Viewed: |
15027 Time(s) |
![concave1.jpeg](files/concave1.jpeg)
|
Description: |
|
Filesize: |
38.21 KB |
Viewed: |
15027 Time(s) |
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
wakeskatingrulezd00d Pop Shuvit
![Pop Shuvit Pop Shuvit](/forum/images/ranks/rank2.gif)
![](images/avatars/9230094004a52d810dbb2e.jpg)
Joined: 04 Oct 2008 Posts: 158 City: folsom, LA
|
Posted: Jun 11, 2010 12:44 am Post subject: |
|
|
how does that split tail ride??
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
RC Backside 180
![Backside 180 Backside 180](/forum/images/ranks/rank4.gif)
![](images/avatars/147526120949f6a7bc25ed0.jpg)
Joined: 11 Jul 2006 Posts: 1033
|
Posted: Jun 11, 2010 12:52 am Post subject: |
|
|
Ro$$ wrote: | The one on the left i call a split-tail, solid deck in the middle and gaps in between the tails. (patent pending!) |
wakeskatingrulezd00d wrote: | that split tail is sick!
i was gonna make one like that, but i never got around to it |
counterpart wrote: | I was honestly thinking about that "Split-Tail" idea earlier today and wondering if it would work! I guess so! |
SST anyone? Ro$$, you might have to take that patent up with Liquid Force.
_________________ When it rains, it pours. |
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
counterpart Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
Joined: 09 Jun 2009 Posts: 266 City: 661
|
Posted: Jun 11, 2010 12:54 am Post subject: |
|
|
Im in love with that "scorpion"!!!!! Looks beautiful! Looks a lot like a New! Any pics of it without tape? sorry.. thats exactly how i plan to make mine if i ever get off my ass and do it!
And whats with the sides/concave things on the split-tail? It looks like you cut out and then added a larger piece for something..? Looks sick though!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
counterpart Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
Joined: 09 Jun 2009 Posts: 266 City: 661
|
Posted: Jun 11, 2010 12:55 am Post subject: |
|
|
What kind of wood are they made out of? Birch? How much did the jig cost and the price of 1 board? Thanks!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
Ro$$ Faceplant
![Faceplant Faceplant](/forum/images/ranks/rank0.gif)
Joined: 21 Jul 2005 Posts: 36 City: Lake Tapps
|
Posted: Jun 11, 2010 1:04 am Post subject: |
|
|
it pops nicely, but I over rounded the edges so its doesnt handle well as far as cutting back and forth, i plan on re shaping them just havent gotten around to it. also I made it 39" to help cut down on weight, but i feel its too short for me ( I'm 6'3") so as it is right now i rate it a 6 out of 10, with a little modification i think it could be a 7.5, if i end up pressing another i have some ideas of how to improve the design. not bad for a first try though..
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
Ro$$ Faceplant
![Faceplant Faceplant](/forum/images/ranks/rank0.gif)
Joined: 21 Jul 2005 Posts: 36 City: Lake Tapps
|
Posted: Jun 11, 2010 1:07 am Post subject: |
|
|
Rc - im just kidding about the patent thing.. but the sst is a different design because its 2 boards bolted together if im not mistaken, mine is a single pressed board..
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
counterpart Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
Joined: 09 Jun 2009 Posts: 266 City: 661
|
Posted: Jun 11, 2010 1:17 am Post subject: |
|
|
Ro$$, Nice! Are they all birch?
More people post up what you have!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
Ro$$ Faceplant
![Faceplant Faceplant](/forum/images/ranks/rank0.gif)
Joined: 21 Jul 2005 Posts: 36 City: Lake Tapps
|
Posted: Jun 11, 2010 1:31 am Post subject: |
|
|
counterpart,
i used the 1/8" birch plys , but i dont recommend using that stuff beacause the middle of that plywood isnt birch, its garbage wood. im switching to 1/16" so my decks are solid hardwood all the way through.. much stronger! the cut outs on the split tail you're talking about are just because i had to piece the top sections together because i was running out of wood. and sorry no pics of the scorpion w/o the grip.
as far as costs, $25 for the press, $150 for the epoxy (for all 3 boards), $20 for the birch plywood, $40 for the clamps, $60 misc supplies (sand paper, brushes, paint, blades, grip etc.)
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
counterpart Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
Joined: 09 Jun 2009 Posts: 266 City: 661
|
Posted: Jun 11, 2010 2:11 am Post subject: |
|
|
Thank you! I really want to make a board soo bad! Finally have a little $$ i can put into this.
Whats the best kind of glue for these? Im thinking some kind of marine grade epoxy rite? Any popular name brands? Also, Whats a good sealant or should i seal it with the epoxy? And is there any way to Stain the board before sealing it? I was thinking a nice dark or cherry deck would look sick! Would it bleed with the epoxy?
Thanks!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
yookyle Backside 180
![Backside 180 Backside 180](/forum/images/ranks/rank4.gif)
![](images/avatars/7782353464b72464a2bdcb.jpg)
Joined: 15 Jan 2009 Posts: 1002 City: Reno
|
Posted: Jun 11, 2010 2:55 am Post subject: |
|
|
if you ever finalize a good splittail board i will buy it
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
-=AlexXx=- Pillage & Plunder
![](images/avatars/2605624424c4679dd0f7ff.jpg)
Joined: 09 Aug 2004 Posts: 17488 City: yes
|
Posted: Jun 11, 2010 11:32 am Post subject: |
|
|
the scorp looks great!
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
rc005 Faceplant
![Faceplant Faceplant](/forum/images/ranks/rank0.gif)
Joined: 20 Jan 2010 Posts: 27
|
Posted: Jun 11, 2010 3:07 pm Post subject: |
|
|
not the greatest looking but its my first..
Uploaded with ImageShack.us
|
|
Back to top |
|
![](templates/subSilver/images/spacer.gif) |
counterpart Frontside 180
![Frontside 180 Frontside 180](/forum/images/ranks/rank3.gif)
Joined: 09 Jun 2009 Posts: 266 City: 661
|
Posted: Jun 11, 2010 8:53 pm Post subject: |
|
|
That looks good! Pics are a little big but who cares? Hows it ride??
|
|
