(TAV2 Alignment ? ? ? ? ?) --------> The Engine Is Done

Montgomery · Backside 180 Joined: 26 Feb 2008 Posts: 976 City: Rogers

Ok so we're installing the TAV2 on the engine today and it says in the instructions that "the flat side faces on the drive and driven should align if they do not adjust spacing on crankshaft". If they don't align then how do I adjust it to make it align ?

Calskater23 · Backside 180 Joined: 26 Jun 2007 Posts: 1795 City: FRESNO

By adjusting the spacing on the crankshaft.

Montgomery · Backside 180 Joined: 26 Feb 2008 Posts: 976 City: Rogers

I'm a little "Special" when it comes to all this how do I adjust the spacing on the crankshaft ?

Montgomery · Backside 180 Joined: 26 Feb 2008 Posts: 976 City: Rogers

I have the spacer on and everything is in place like the instructions say but the 2 flat faced parts don't line up exactly

iWinch · Ollie Joined: 15 Aug 2007 Posts: 93 City: ATL

Use washers. I had that same problem with my Robin Subaru engine and I used washers for a 1" axel. Just dig around the box bc you can find any combination of thickness that you need. I also had to get a longer or short bolt to hold the drive unit on the engine PTO. I can't remember which one. I think longer. Good luck...

Montgomery · Backside 180 Joined: 26 Feb 2008 Posts: 976 City: Rogers

awesome I'll try that

JB_CANSKATE · Posted: Jun 17, 2008 8:52 pm Post subject:

I had the same thing on my Briggs. I had to take a little off the spacer to make em line up.

Montgomery · Backside 180 Joined: 26 Feb 2008 Posts: 976 City: Rogers

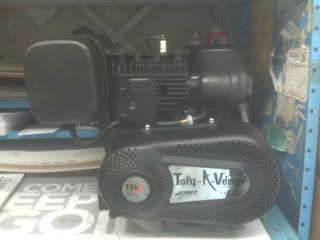

So we just finshed putting the engine back together after painting and mounting the TAV now I'm ready to build the frame which should be done by tomorrow
